CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2

Name: CE EV Fast Wall mounted AC Charging Station 22kw2 Type 2
Brand: Highfly
Price: 540.00 USD

Cheap CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2 wholesale

Place of Origin : Germany

Brand Name : Highfly

Model Number : HFL-EVC2201E

Packaging Details : Customized

Supply Ability : 100000 Piece/Pieces per Week

MOQ : 2 pieces

Price : $540.00/pieces 2-5 pieces

Type : Cigarette Lighter, Wireless Charger, Infrared Wireless Charger, Magnetic Wireless Charger, Wireless Arm Type, PHONE HOLDER

Year : 2016-2016, 2008-2010, 2008-2011, 2008-2012, 2008-2016, 2017-2019, 2015-2016, 2013-2013, 2015-2016, 2012-2013, 2017-2019, 2014-2016, 2013-2016, Universal, 2012-, 2016-2019, 2013-, 2008-, 2012-2013, 2017-, 2017-2019, 2008-2010, 2019-, 2020-, 2019-, 2018-, 20

Model : S, Model Y RWD Long Range, model3, X, Roadster, TeslaRoadster, Model Y AWD Performance, Model 3 Performance, Model X 70D, MODELS, MODEL 3 (5YJ3), MODEL S, MODEL Y (5YJY), modelx, Model X, Model Y AWD Long Range, Universal, Model X, Roadster, MODEL S, model

Function : Remote Control, APP Control, screen display

Car Fitment : TESLA M., Tesla, Universal

Charging Port : 2 ports

Connection : SD Card, SIM Card, TF Card, Build-in WiFi

Combination : Built-in Microphone

Voltage : 12-36V

Warranty : 2 years, 2 Years

Product Name : EV Charging Stations

Frequency : 50/ 60Hz

Output current : 16A/32A

Leakage protection : RCD Type A + 6mA DC

Electric energy measurement : Accuracy Class 1 energy meter

Display mode : 4.3 inch LCD

Plug cable length : 5m

Communication : Ethernet/ WiFi/ 4G LTE

Protection level : IP65

Port : Zhongshan/Guangzhou/Shenzhen

Contact Now

PRODUCT PARAMETERS

CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2

Specification

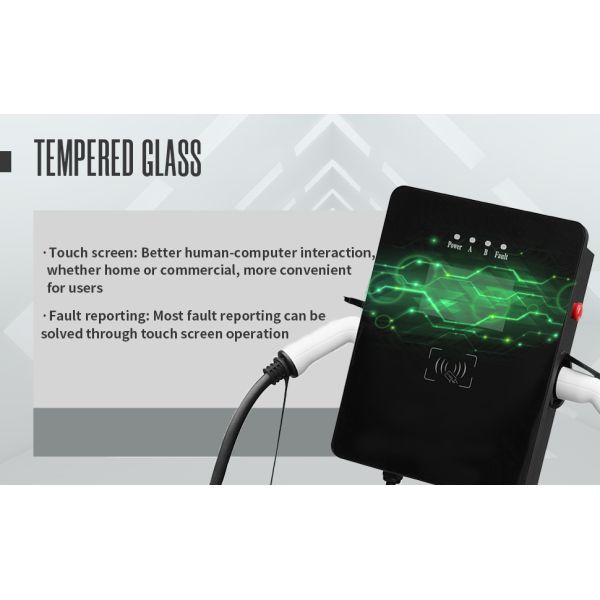

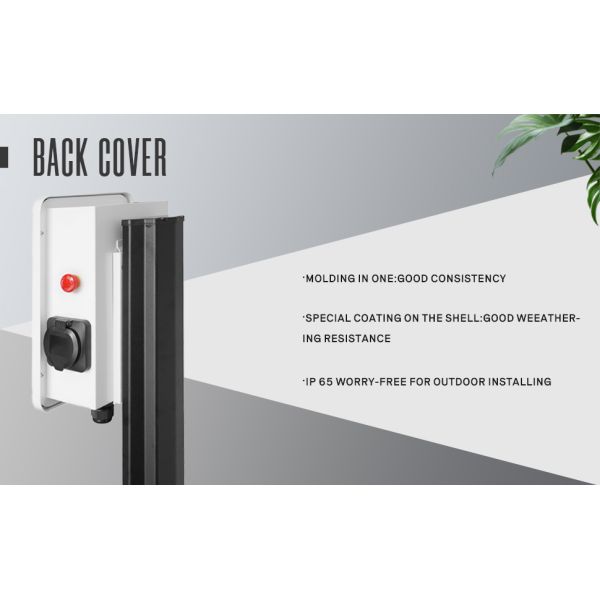

* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back
cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.

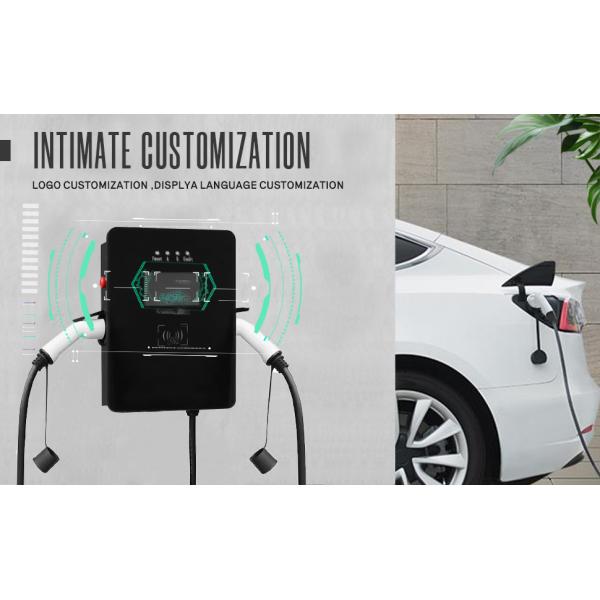

* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
*7 inch highlighted LED touch screen: Shows live charging current, voltage, power consumption, time

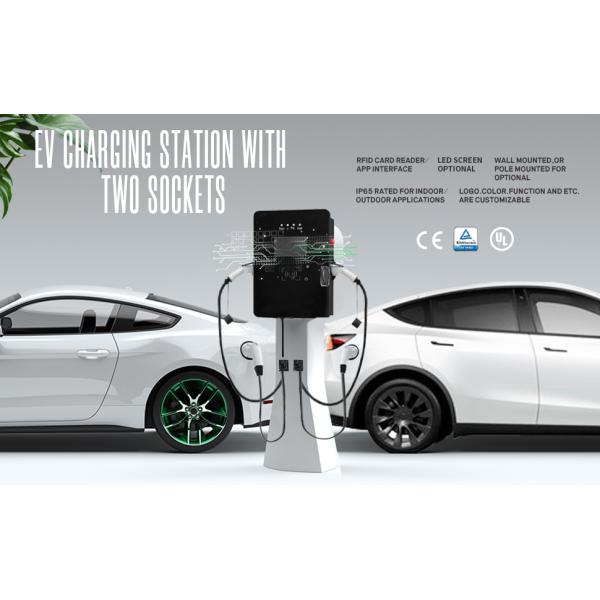

* Versatile Installation wall mount or pedestal applications

Protection:

* RCD Type A＋DC 6Ma or Type B inside.
* High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage
Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection,
Over-temp Protection, Surge Protection and etc.

Power Specification
	EU Standard
Charging Connector Type	IEC 62196-2 (Type 2)
AC Power Input Rating	1 Phase		3 Phase
AC Power Input Rating		230V±15%		380V±15%
AC Power Output Rating	3.5kw/16A		11kw/16A
		7kw/32A		22kw/32A
		7kw2/32A2		11kw2/16A2
				22kw2/32A2
Frequency Rating	50/60 Hz
User Interface & Control
Emergency Stop Button	Yes		Plug-and-Charging	Yes
RFID Card Charging	Yes		App Charging	Yes
Ethernet Interface	Yes		Wifi Function	Yes
OCPP Protocol	OCPP 1.6		7-inch LED Touch Screen	Yes
Protection
Over Voltage Protection	Yes		Under Voltage Protection	Yes
Over Load Protection	Yes		Short Circuit Protection	Yes
Earth Leakage Protection	Yes		Ground Protection	Yes
Over-temp Protection	Yes		Surge Protection	Yes
RCD	Type A＋DC 6Ma OR TYPE B
Environmental
Storage Temperature	-40 ~ 75℃		Operating Temperature	-30 ~ 50℃
Operating Humidity	Up tp 95%, non-condensing		Altitude	≤2000m
Cooling Method	Natural Cooling
Wallbox Mechanical parameters
IP Code	IP65		Dimension(H×W×D,mm)	457×338×115
Weight	12.5kg		Charging Cable Length	≤2000m
Enclosure Material	Front-panel: Tempered Glass, Back-cover: Plate Metal
Packaging parameters
Packaging material	Professional carton		Dimension(H×W×D,mm)	530×360×135
Weight(Including Wallbox Mechanical)	13kg
Floor mounted rod(Optional)
Dimension(H×W×D,mm)	1350×200×50		Weight	9kg
Enclosure Material	Metal

FAQ

Q1: Can I get a lower price if I order large quantities?
A1: Yes, the larger the quantity, the lower the price.
Q2: What's the MOQ?
A2: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3: How about your delivery time?
A3: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
Q4:What is your terms of payment?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5:What is the warranty?
A5: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of delivery
